Oxygen Concentrator/Generator

Oxygen Concentrator/Generator

Oxygen Inhalation+Atomization, 2 in 1 Machine


Oxygen Concentrator Model:
  11HW

Net Weight: 6.5KG

Overall dimension :195*348*288mm

Consumption power :150W

Average sound pressure level :30-50kPa

Oxygen output pressure :20~70kPa

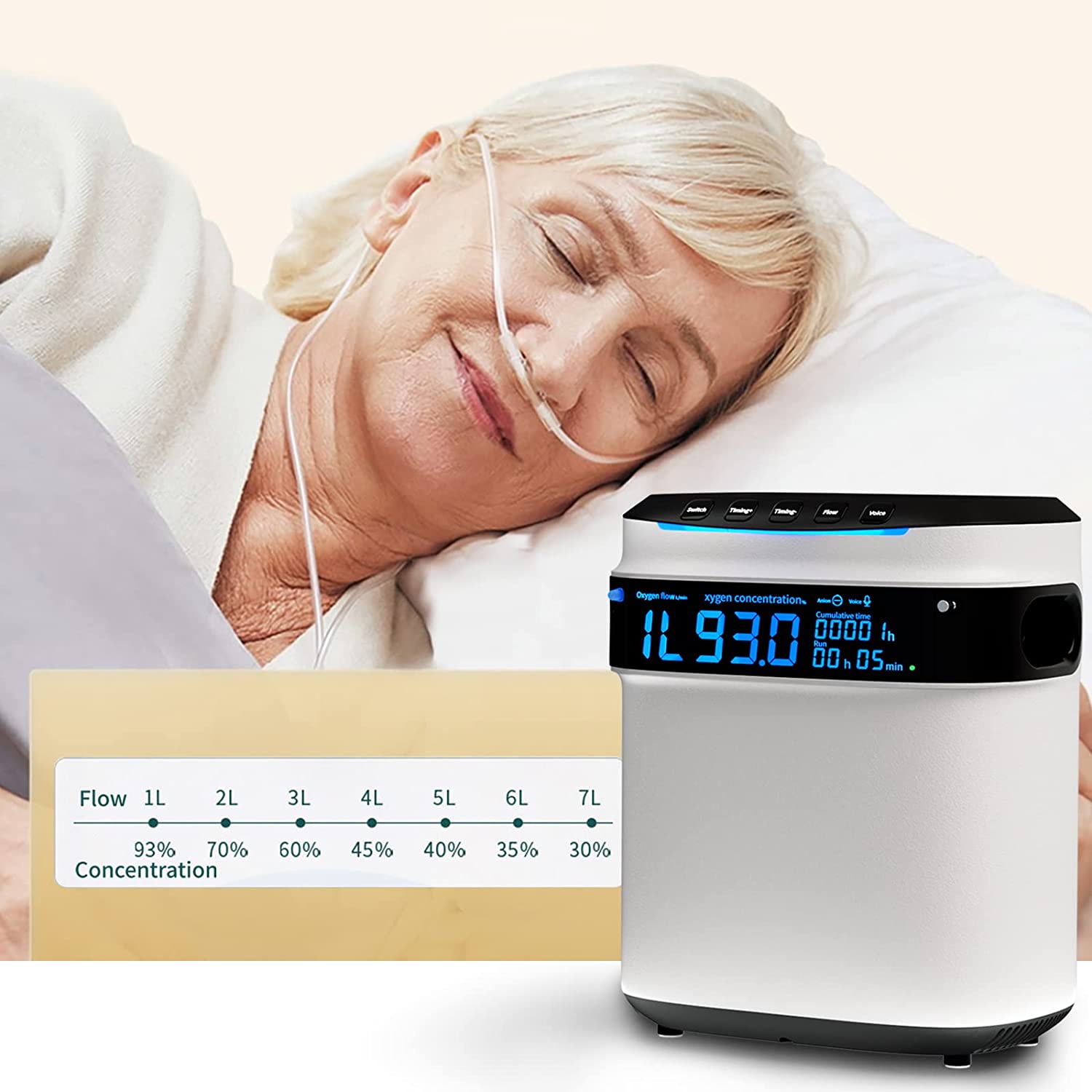

Flow/oxygen concentration :1L~93%,2L~70%,3L~60%,4L~45%,5L~40%,6L~35%,7L~30%

Power supply voltage :110/220V 50/60Hz


Ambient temperature :5℃-40℃

Relative humidity:≤80%RH

Ambient temperature:5℃-40℃

Air pressure:860hPa-1060hPa

Temperature range: -20℃~+55 ℃

Relative humidity: ≤ 95%RH

Atmosphere pressure: 500hPa~1060hPa(10.15psi~15.37psi)

Flow display :1-7 Grade

Material :ABS full plastic shell


Description

【Package】
  Product Size: 19.5 *34.8 * 28.8cm

  Box Size:  37.55*28.35*45.05cm

  Carton Size: 39.3*39.6*47.2cm(1 Set/Carton)
  Gross Weight: 9.5Kgs
